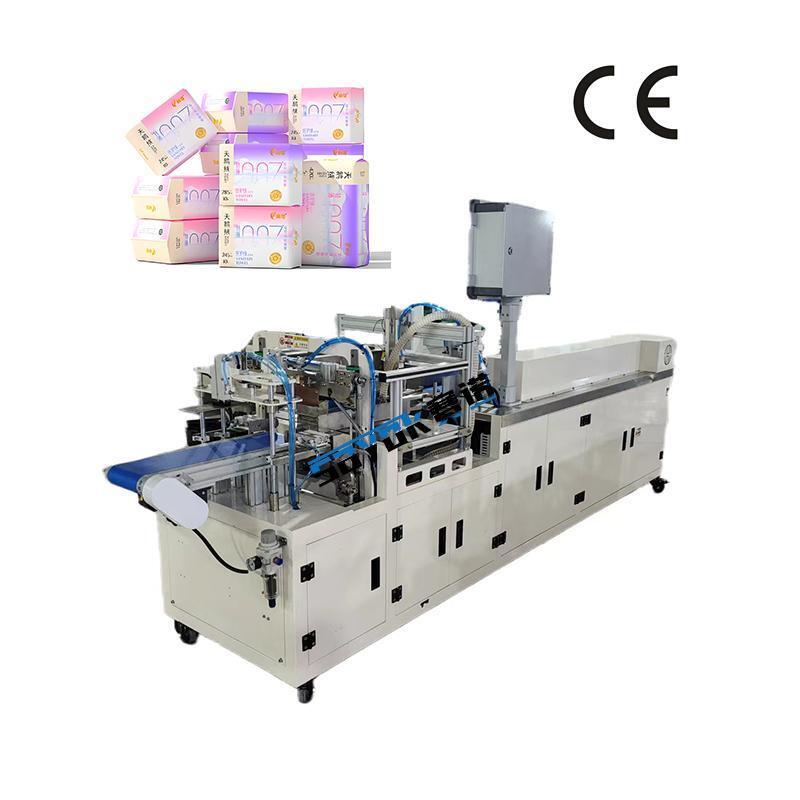

Servo Driven 8-10 PCs Sanitary Napkin Premade Pouch Automatic Bagging Sealing Machine
Quick Details:
1. Specially designed for sanitary pads, sanitary napkins, and baby diapers.
2. Adopts PLC + servo motors to control the pusher, which is better to prevent the pouches from breaking..
3. It adopts a temperature-controlled die head sealing system for more procisely control the sealing temperature.
4. Automatic bag feeding and opening, which is more efficient and cost saving.
5. It adopts cutter trimming mechanism to trim leftover edges and keep the bag mouth flat and tidy.
6. The cutter is made of high-hardness D2 steel for greatly extended service life.
7. Packaging angle formed by mold suction; customized molds available per product specification
8. Very simple in changing molds, no need too many adjustments.
Specifications:
| Model |
SN-350ZD |
|
Servo Motor Power |
0.75KW, 400W |
| Packing Speed |
15-30 bags/min (depends on product and feeding speed) |
|
Fan Power |
1KW |
| Power Supply |
220v 50/60hz |
|
Air Source |
0.6-0.8MPa |
|
Working Temperature |
100 - 200 degree |
| Packed size | L:120-280mm W:80-100 mm L:50-90mm |
| Machine size | 3150*800*1400mm |
| Machine Weght | Approx 500kg |
Machine Details:
|
1. Packaging machine appearance It can realize the one-step process of material release, packaging and sealing and cutting |
|
|
2.Automatic bag making Roll film on the machine, automatic bag-making edge sealing beautiful, sticky bags seamless. |
|
|
3. Multi-functional customized mechanical devices enjoy quality service |
|
|
4.Intelligent pushing The product is automatically pushed at the entrance end of the bag according to the different product configurations. |
|
|
5. Packaging we adopt wooden case as package type. It's suitable for long-distance transport.According to customers' special demand, we could adopt sheet iron case and so on. |
|
| 6. Packing neat and good looking |
|
